Description

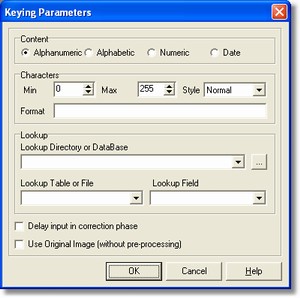

The Keying parameters dialog allows to specify checks for the assisted characters recognition.
How to get it
Select the Processing command from Fields menu after placing on the Keying field.
Option
Show the data type contained by the field: alphabetic (only letters), numeric (only numbers), alphanumeric (both letters and numbers) data.
It is possible to specify or not these features.
Min e max indicate the characters numbers that can be recognized, out of such range the field enters correction.
The write style can be only in capitals (only upper-case letters), lower case (only lower case letters), normal (both uppers and lowers). For avoiding errors during the reading of the data, it is possible to specify for the read fields a format mask.
These following characters are used to define the mask:
D: (DIGIT) presence of a numeric character, namely, digits from 0 to 9.
U: (UPPERCASE) presence of an alphabetic upper-case character or a space.
L: (LOWERCASE) presence of an alphabetic lower-case character.
It allows to check the presence of the data into a table or a text file. It can be shown a database so a table and the top of this last; or it can be shown a directory (where its way must end with the character "\") and a text file.txt instead of the table (among the ones available into the list, inside of the directory).
- Delay Input in Correction Phase
It shows the window for inserting value through the correction phase.
- Use Original Image (without Pre-processing)
It shows the original image got without applying the pre-processing.
Notes
None.
